Product Details:
|
| Name: | Flexible Bifacial Solar Panels | Panel Dimensions: | 115*98.5CM |
|---|---|---|---|
| Brand Name: | KUOMAN | Work Time (h): | 24 Hours |
| Material: | Monocrystalline Silicon | Color: | Black |
| Max. Power: | 200W | Backsheet Material: | TPT |
| Size: | 515*525*3mm | Waterproof: | IP 65 |
| Backing Color: | White Or Black Or Transparent | Oem Order: | Acceptable |
| Connector Type: | MC4 | Cell Type: | 125*125mm |
| Maximum Voltage: | 3 Volts | Output Mode: | MC4/DC/Anderson |
| Product Keywords: | Flexible Panel | Efficiency: | 20% |
| Thickness: | 2.5mm | Protection Level: | IP67 |
| Reliability: | Not Fragile, Safe And Reliable | ||
| Highlight: | Flexible Bifacial Solar Panels 200W,Bifacial Solar Panel 200 Watt,Carbon Fiber Solar Panels IP67 |
||

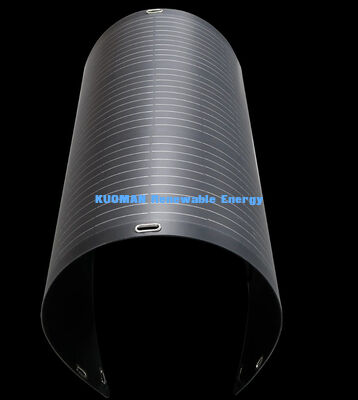

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber
This product has acquired the relevant product qualification(s)/license(s) of certain applicablecountry/countries.

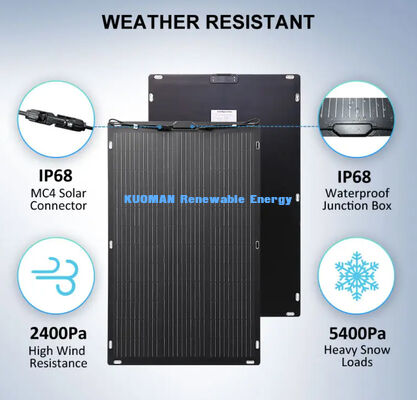

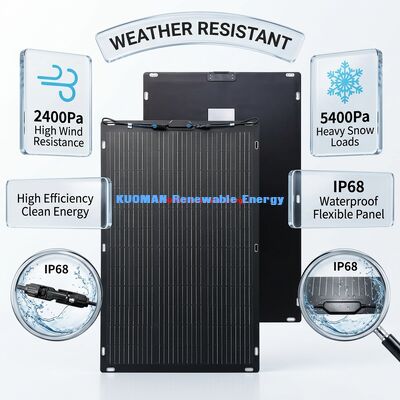

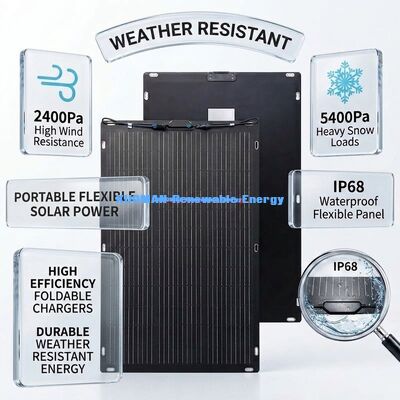

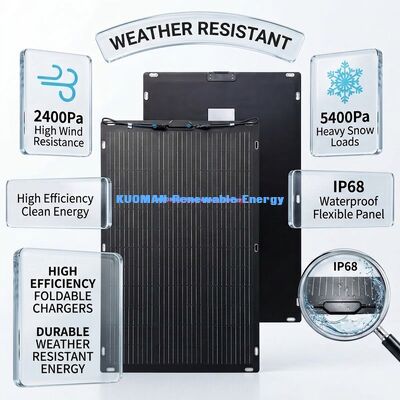

Advantage of 200W flexible solar panel :
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 24V battery,power station,power generator,powerbank;

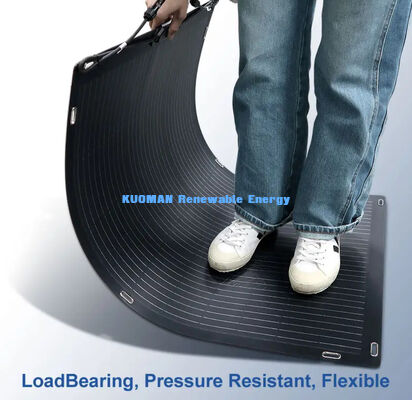

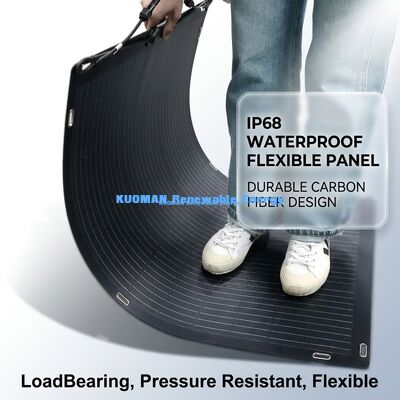

6)Can be bent to 360°;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)With transparent material with bifacial function ;
9)with CE,ROHS,FCC certification;
10)With short leading time for 500-1000PCS for only 20 days.
Flexible solar panel Details Specification:
| Output Power(@STC ) | 210.0 W ±5% |
| Open Voltage(@STC) | 48.9V ±5% |
| Standard Voltage(@STC) | 40.0V ±5% |
| Standard Current(@STC) | 5.3A ±5% |
| Short Circuit(@STC) | 5.7A ±5% |
| Denier type eyelets | Inner-Diameter:6*25mm,Outer diameter:10*30mm,silver color |
| Accessories | Converge MC4 cable,14AWG |
Details of 200W flexible solar panel shown:
1.Fully waterproof conjunction box with silicon glue,specially with diode built in toavoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;

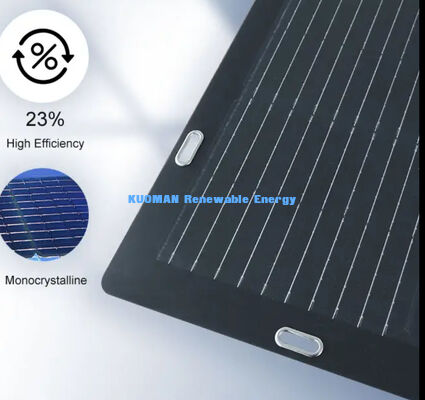

4.High efficiency solar cell up to 23% ;5.Universal and robust MC4 connector.
Flexible Solar Panel Specification:
| Brand Name | KUOMAN SOLAR |
| Model Number | KM FL210W |
| Material | FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber |
| Color | White/Black |
| Cell size | 182mmx182mm |
| Panel Dimensions | 115*98.5CM |
| Panel Efficiency | >=23% |
| OEM/ODM | Availble |
| Warranty | 1year |
FAQ
1.Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.
2.What's kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.2)Utility model of China and Appearance Patent of Europe.
3.Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
