Product Details:
|
| Nominal Voltage: | 51.2V | Nominal Capacity: | 200Ah~600Ah |
|---|---|---|---|
| Nominal Energy: | 10.24KWh~30.72KWh | Dimension: | 600*210*300mm(single Module) |
| Efficiency: | 95% - 98% | Operating Temperature: | -4°F To 113°F |
| Highlight: | 51.2V LiFePO4 Battery,400Ah Stackable Battery,Real Time Monitoring Home Energy Storage |
||

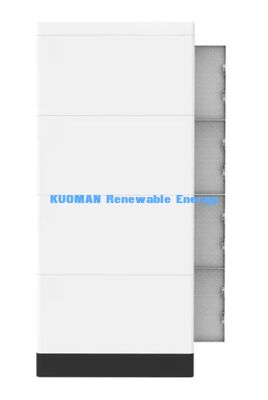

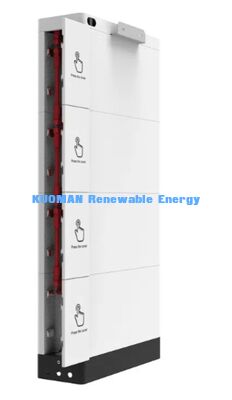

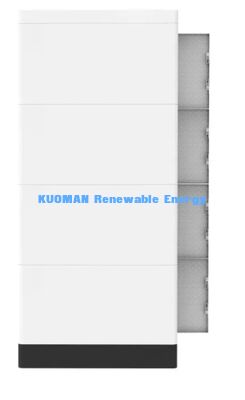

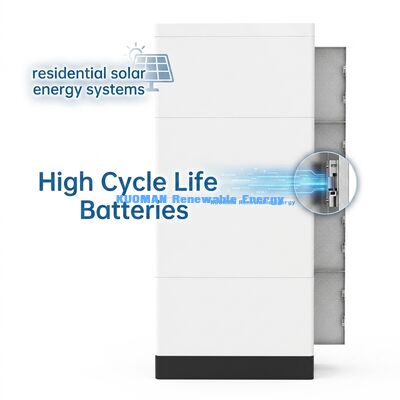

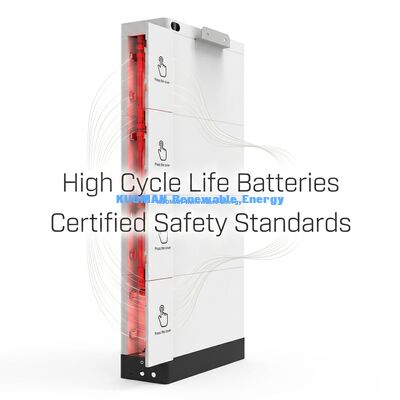

KM New Power Energy stackable LiFePO4 Battery is a popular choice for residential energy storage, designed with EVE brand new prismatic LiFePO4 battery cells (3.2V 100Ah) and 100A intelligent BMS.
It provides 10kWh to 30kWh power for home energy storage demand. You can charge it by solar panels or diesel generators. This 48V lithium battery adopts LiFePO4 technology, which has the highest safety with CE, RoHS, UL certificates and the longest life of more than 8000 cycles. Its management system provides comprehensive protection as well as real-time monitoring.
| Product Model | KM48V300P2 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Battery Energy Choice | 5.12KWh/10.24KWh/15.36KWh/20.48KWh |
| Cell Type | LiFePO4 Cell |
| Cycle Life | 6000 cycles @25℃, 0.5C 80% DOD |
| Power Choice | 4.5KW~9KW |
| Max PV Input Power | 4.5KW/5.4KW/6KW/6.9KW/7.5KW/9KW |
| Max PV Input Voltage | 600V |
| MPPT Voltage Range | 100V~550V |
| Max PV Input Current | 16A |
| Max Short Circuit Current/MPPT | 24A |
| Rated Output Power | 3KW/3.68KW/4KW/4.6KW/5KW/6KW |
| Max Output Power | 3.3KVA/3.68KVA/4.4KVA/4.6KVA/5.5KVA/6KVA |
| Max Output Current | 15A/16A/20A/20.9A/22.7A/26.1A |
| Rated Voltage | 230V |
| Max Efficiency | 97.50% |
| Max Battery Charge/Discharge Efficiency | 95% |
