Product Details:
|
| Nominal Voltage: | 51.2V | Nominal Capacity: | 300Ah |
|---|---|---|---|
| Nominal Energy: | 15360Wh | Dimensions: | 660*820*140mm |
| Max Charging Current: | 100A | Operating Temperature: | -20°C To 50°C |
| Highlight: | 300Ah LiFePO4 Battery,Wall Mount Home Battery Storage,8000 Cycles Lithium-ion Battery |
||

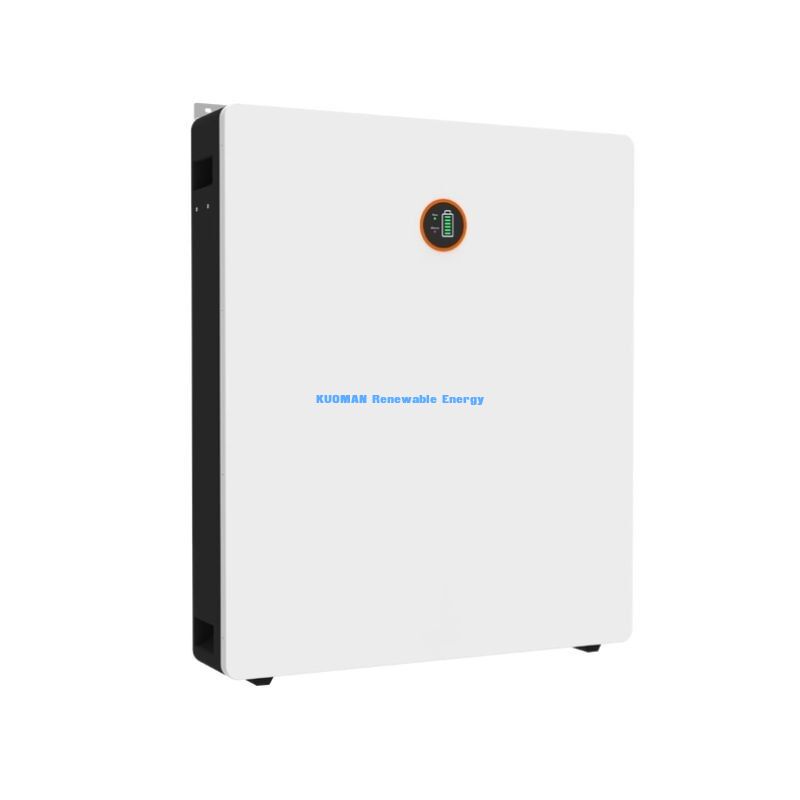

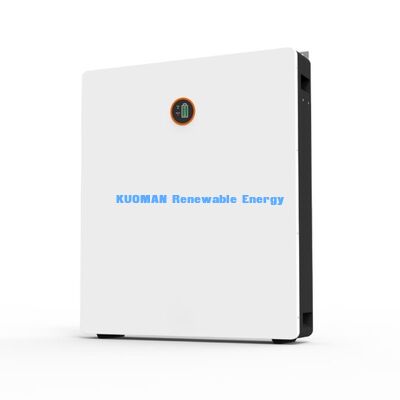

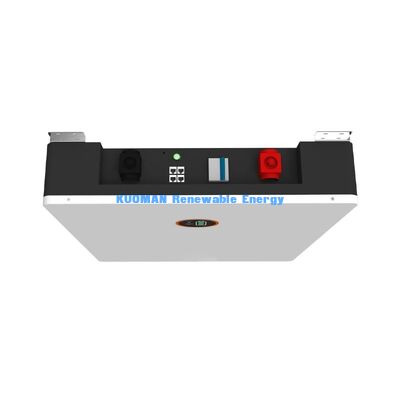

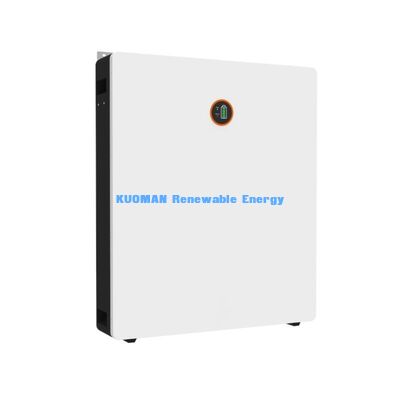

KM 48V300P2 48V 300Ah LiFePO4 Home Power Battery System is designed for solar energy storage systems, featuring EVE brand new prismatic 3.2V 200Ah LiFePO4 battery cells and 100A intelligent BMS. This system provides 15,360Wh energy storage capacity to meet residential power demands.
The battery can be charged via solar panels or diesel generators and utilizes LiFePO4 technology for maximum safety with CE, RoHS, and UL certifications. With a lifespan exceeding 8,000 cycles, the integrated management system offers comprehensive protection and real-time monitoring capabilities.
| Product Model | KM48V300P2 |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 300Ah |
| Nominal Energy | 15,360Wh |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 56.2V |
| Max Charging Current | 100A |
| Standard Charging Current | 50A |
| Discharging Cut-off Voltage | 45.6V |
| Discharging Current | 50A |
| Max Continuous Discharging Current | 100A |
| Peak Discharging Current (3S) | 400A |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit, etc. |
| Battery Size | 660 × 820 × 140mm |
| Communication | CAN/RS485/RS232/Bluetooth (optional) |
| Certificate | UN38.3/MSDS/Sea/Air Transport Report/CE/IEC |
Additional models available: 300Ah, 200Ah, 150Ah, 280Ah, 50Ah, 25Ah
